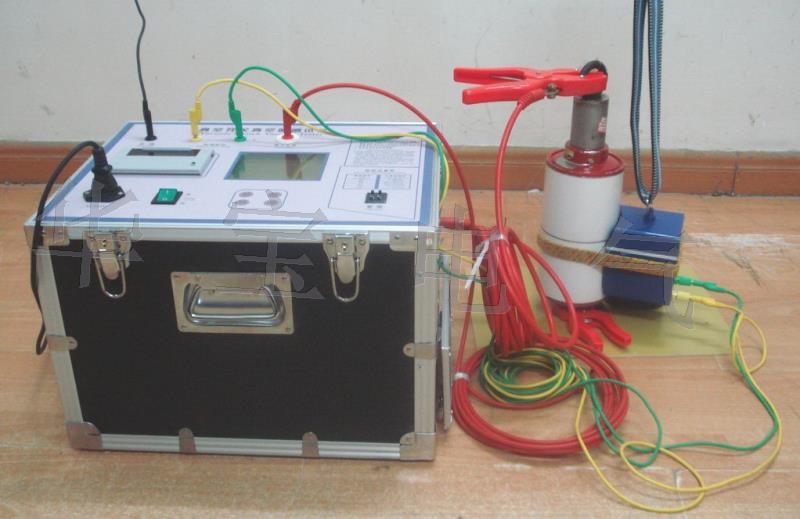

HB-DVC+vacuum tester is a new generation of vacuum tester developed by Qingdao Pingdu Huabao Electric Co., Ltd. on the basis of HB-DVC. It uses a new excitation coil and magnetron discharge method to test the vacuum of arc extinguishing chamber without dismantling the arc extinguishing chamber. At the same time, the synchronous control and data acquisition processing by computer can check the quality and leakage of vacuum tube, which has the characteristics of higher accuracy, better stability and higher intelligence.

HB-DVC+, 186+5322+5978 QQ1123+134968 Wechat: 18653225978

1. To test various types of vacuum switch tubes, we can check the leakage of vacuum tubes and see whether the leakage of vacuum circuit breakers is qualified.

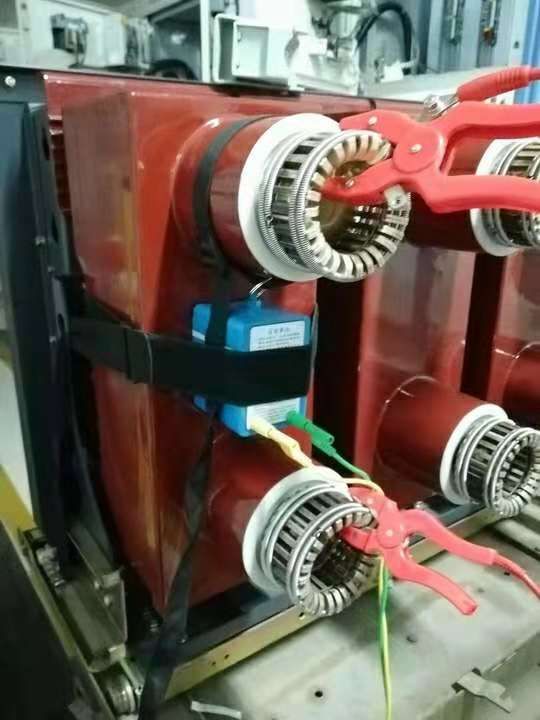

2. Detection method: The new excitation coil is used to measure the vacuum tube without disassembly.

3. Scope of application: This instrument is a multi-purpose machine, which can measure various types of vacuum switches.

4. Electric field voltage: 30KV

5. Magnetic field voltage: 1700V

6. Detection range: 10-5-10-1 Pa

7. Measurement accuracy: 10-5-10-4 Pa, 15%

10-4-10-3 Pa, 15%

10-3-10-2 Pa, 10%

10-2-10-1 Pa, 10%

8. Opening distance of switch tube when testing vacuum degree: normal operating distance.

9. Main engine weight: 24kg

11. Shape size: 420 x 320 x 280 (mm)

12. Sampler: Magnetron Coil

5. External computer control for leakage rate calculation and printing
